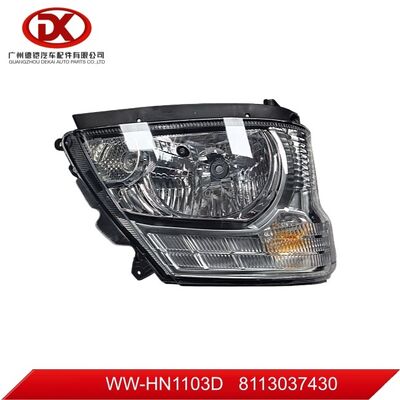

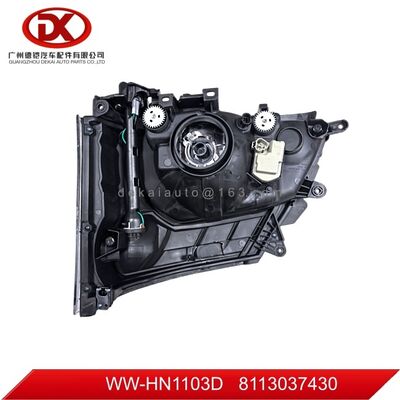

Suitable for HINO 300 Front headlight;RH (With Motor) 8113037430 81130-37430

Suitable for HINO 300 Front headlight ;RH (With Motor) 8113037430  81130-37430

WW-HN1103D 8113037430  81130-37430 Front headlight ;RH (With Motor)

More Parts:

The structure of  front headlight ;RH (With Motor)

1.External shell part

(1)Headlight transparent lens:Made of PC polycarbonate material with UV-proof and scratch-resistant coating on the surface. It is tightly sealed with the rear housing, transmitting light while preventing dust, water and internal dirt accumulation.

(2)Headlight rear housing:Injection-molded from engineering plastic, serving as the mounting base for all internal parts. Reserved with bulb maintenance opening, wiring harness interface, ventilation hole and mounting fixing lugs.

(3)Decorative inner lining frame / electroplated trim ring:Separates the areas of high beam, low beam, turn signal lamp and daytime running lamp; blocks stray light and beautifies the overall vehicle appearance.

(4)Headlight mounting bracket:Fixes the headlight assembly on the vehicle frame, bumper and fender, equipped with positioning holes and buffer rubber pads.

2.Optical System Components

(1)Reflector bowl:Parabolic aluminum-plated mirror structure, which converges and directionally projects the light beam, commonly used in basic halogen headlights.

(2)Convex lens assembly:Composed of convex lens, shading baffle and lens bracket. It cuts the light into a flat light pattern to avoid dazzling oncoming drivers, mostly applied to low beam, xenon and LED headlights.

(3)Light guide strip:Adopts the optical light guiding principle to convert LED point light source into uniform strip light, used for daytime running lamp and position lamp.

(4)Light distribution pattern:Optical texture inside the lens, fine-tunes light distribution for more even road illumination.

3.Light Source and Electrical Components

(1)Light source bodyLight source body:Halogen bulb, xenon lamp bead, LED lamp module, laser light source.

(2)Ballast:Specially used for xenon headlights, it boosts the vehicle 12V voltage to start and stabilize the operation of xenon light source.

(3)LED driver module:Provides constant current and voltage stabilization for LED, protects lamp beads and avoids burnout caused by voltage fluctuation.

(4)Turn signal / position light source:Independent bulb or LED lamp set, integrated inside the headlight assembly.

HINO TRUCK PARTS

HINO TRUCK PARTS PURE HINO GENUINE PARTS Hino’s research and development in engines and components is world class, and the results show: Hino engines are among the highest rated for longevity on the market. That means lower costs for operation.
What are the different types of Hino truck parts?
We sell most models of Hino Truck Parts including the following models: 238, FD, SG, 258, 338, 268. We sell many different part types of Hino including but not limited to Hoods, Bumpers, Headlights, Grills, Radiator, Side Skirts & Fairings, Fuel Tanks, Cabs, Engines, Transmissions, Rear End Differentials, Accessories.

Our advantage
1． Quality stable, price competitive, good after-sale service
All of the products we offer are good quality with reasonable price. We focus on the product quality and after-sales services to ensure the benefit of our customers. To give customers confidence in long-term cooperation with our company.
2． Many of our products have stock, the delivery time is fast.
Our Isuzu products have a large amount of stock inventory, can save time cost for customers. The stock products we can ship within 3 days. if the product need to produce, the delivery time will be depends on the items and the quantity of the order.
3. No MOQ Request, small order acceptable.
Our ISUZU products we do not have MOQ requirements, we accept any quantity of orders from customers. Of course, the order quantity is bigger, the price will be more favorable.
4. One-stop service
We can provide to customers with other products except Isuzu parts, and we can receive goods for customers from other suppliers and make shipment.

FAQ

1.Q:What is your terms of payment?
A:T/T 30% as deposit, and 70% before delivery. We will send you the packing list and the photos of the products before your payment.

2.Q:Do you have MOQ request?
A: We don’t have MOQ request. We are wholesaler for ISUZU Truck spare parts, we have a large stock of products.

3.Q: What is the delivery time?
A: The delivery is depends on the storage. If the items we have in stock, we can make delivery within 7days. For the items need to be ordered the delivery is betwen20-45 days.

4.Q.:Can you produce according to the samples?
A: Clients’sample is welcome. We are able to produce the specific products according to your sample.

5.Q: Can l get a lower price if l order large quantities?
A: Yes, cheaper prices with bigger amount of order.
