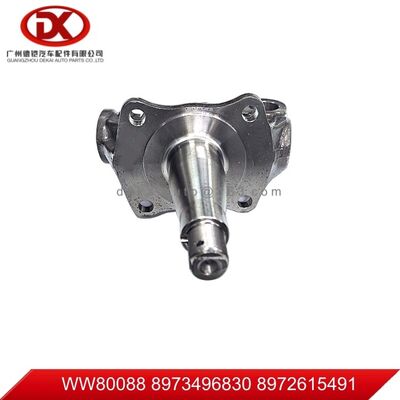

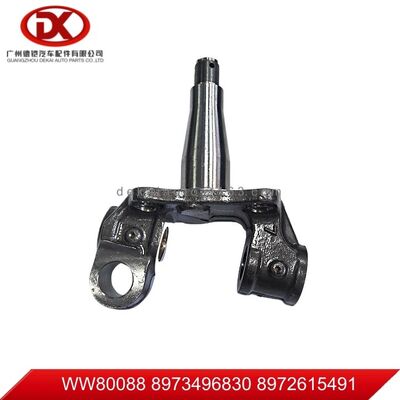

Suitable for Isuzu 4HG1/4HG1-T knucke RH 8973496830 8972615491

Suitable for Isuzu 4HG1/4HG1-T knucke RH  8973496830 8972615491

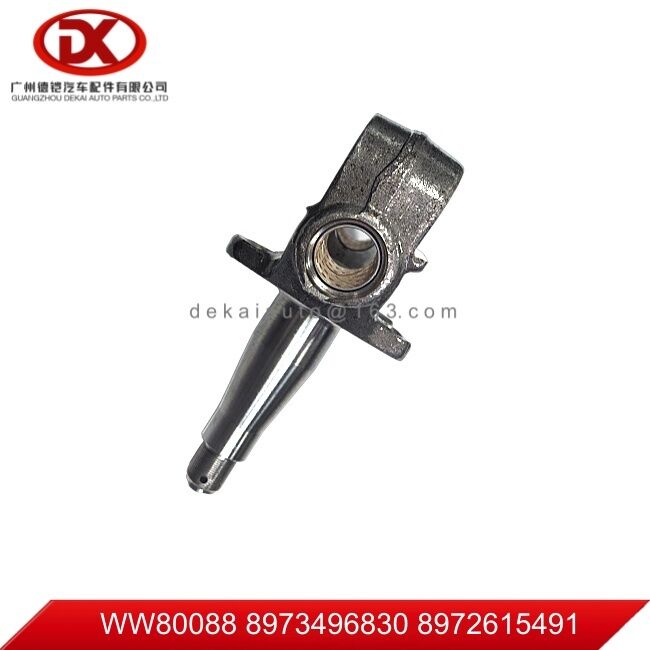

WW80088  Knucke RH  8973496830 8972615491 ISUZU 4HG1/4HG1-T


More Parts:


How the steering knuckle operates

I. Core Structure of the Steering Knuckle (Foundation of Operation)

1.Hub mounting surface: Connected to the wheel hub via bearings; the wheel is directly fixed to the hub, and the steering knuckle drives the hub/wheel to deflect together.

2.Steering arms (knuckle arms): Divided into "upper steering arm" and "lower steering arm," these are critical for receiving steering force and connect to the tie rods via ball joints.

3. Suspension attachment points: The upper end connects to the vehicle body via the shock absorber/spring seat, while the lower end links to the frame via the lower control arm (or strut in MacPherson suspensions). Some models also feature a sway bar attachment point.

4.Brake mounting surface: Secures the brake caliper (disc brakes) or brake drum (drum brakes) and withstands the reaction force during braking.

II. Core Operational Logic (Two Stages: Steering + Load-Bearing & Cushioning)

1. Steering Process: Transmitting Steering Force to Deflect the Wheels

• Step 1: Turning the steering wheel drives the "steering gear" (e.g., rack-and-pinion steering gear) via the steering column.
• Step 2: The steering gear converts rotational motion into linear motion, pushing/pulling the "tie rods" (left and right) forward or backward.
• Step 3: The tie rods connect to the steering knuckle’s "steering arms" via ball joints, transferring thrust/pull to the steering knuckle.
• Step 4: The steering knuckle pivots around the suspension attachment point (e.g., the strut axis in MacPherson suspensions, or the line connecting the upper and lower ball joints in double-wishbone suspensions), driving the hub and wheel to deflect (left/right turn).
• Key detail: The steering knuckle’s deflection angle is determined by the steering gear’s stroke and tie rod length, with a maximum deflection angle typically between 35°–40° to ensure the vehicle’s minimum turning radius.

2. Load-Bearing & Cushioning: Cooperating with the Suspension to Absorb Vibrations and Maintain Wheel Contact

• Load-bearing: The vehicle’s weight is transmitted from the shock absorber/spring to the steering knuckle, then to the wheel via the hub bearing, and finally to the ground.
• Cushioning: When the wheel rolls over a pothole or bump, the road impact pushes the wheel up/down → driving the steering knuckle to swing up/down around the "lower control arm ball joint" (or suspension attachment point).
• Posture maintenance: The steering knuckle’s suspension attachment points (e.g., upper and lower control arms in double-wishbone setups) limit the wheel’s movement trajectory, ensuring the wheel remains perpendicular to the ground (or maintains the preset camber/toe angle) to prevent drift and uneven tire wear.

III. Key Cooperating Components for Steering Knuckle Operation (Indispensable)

1. Tie rods + ball joints: Transmit steering force; ball joints allow the steering knuckle to deflect while moving up/down with the suspension (multi-angle movement).
2. Hub bearings: Reduce friction between the steering knuckle and hub, enabling free wheel rotation while bearing radial (weight) and axial (lateral force) loads.
3. Lower control arm/shock absorber: Provide support points and movement trajectories for the steering knuckle; the shock absorber absorbs vibrations, and the lower control arm transmits lateral forces (e.g., centrifugal force during cornering).
